CADViewr

View CAD Files in the Browser — Instantly
Export When Needed

CADViewr is a developer-ready module that brings full DWG and DXF visualization to the browser — fast, interactive, and with zero desktop software required.

🧩 Core Capability: In-Browser CAD Viewing

• Direct DWG/DXF Rendering (2000–2018)

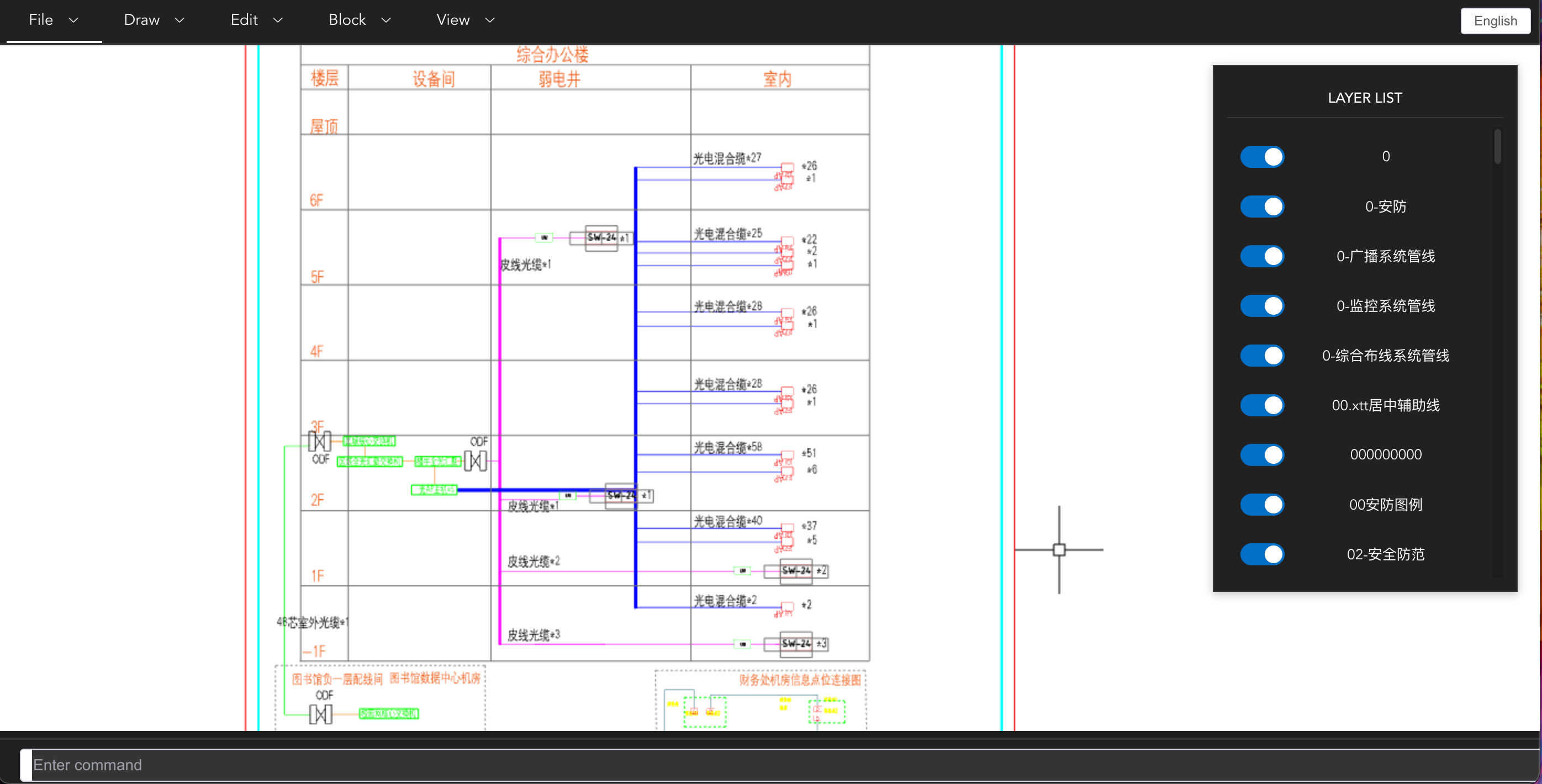

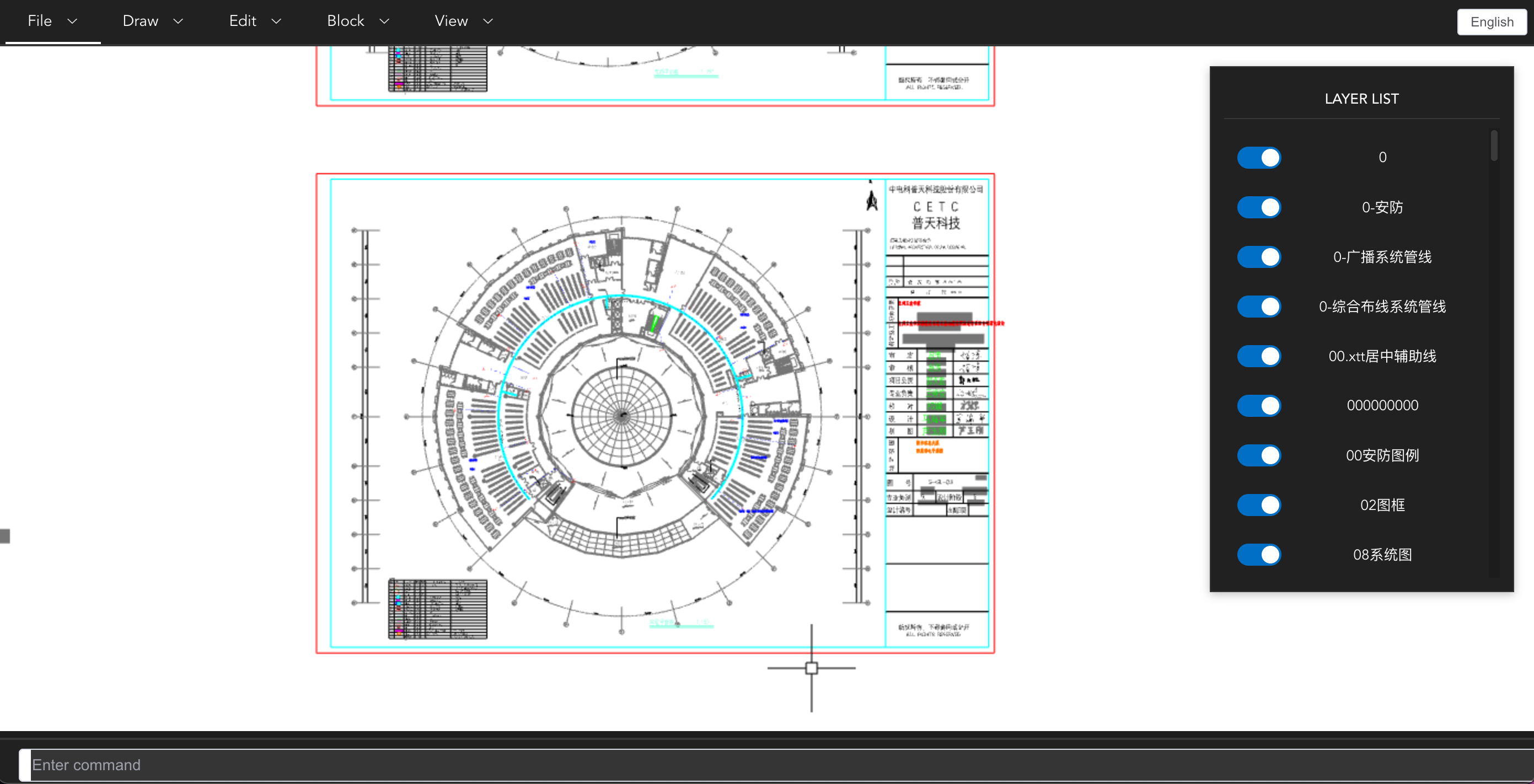

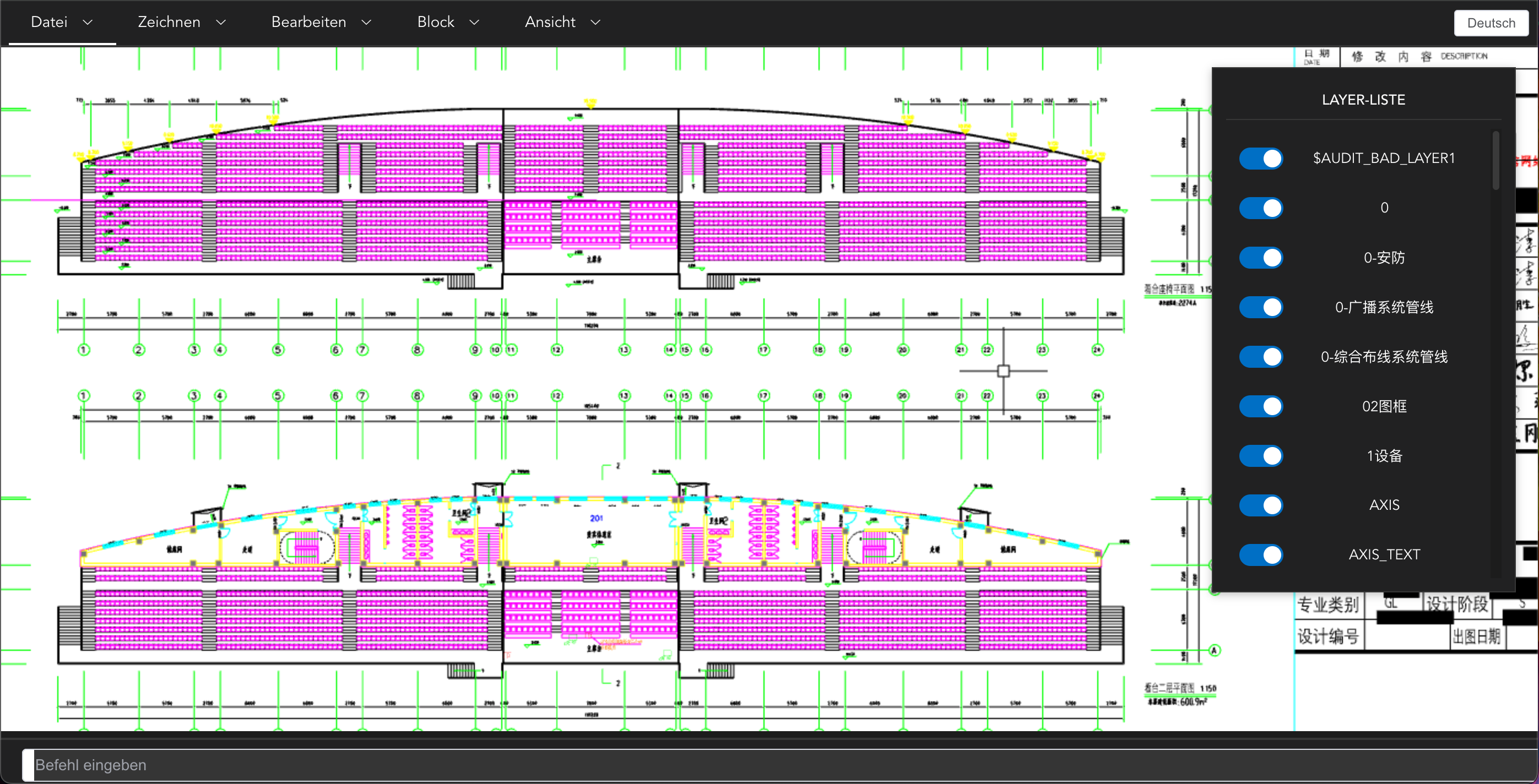

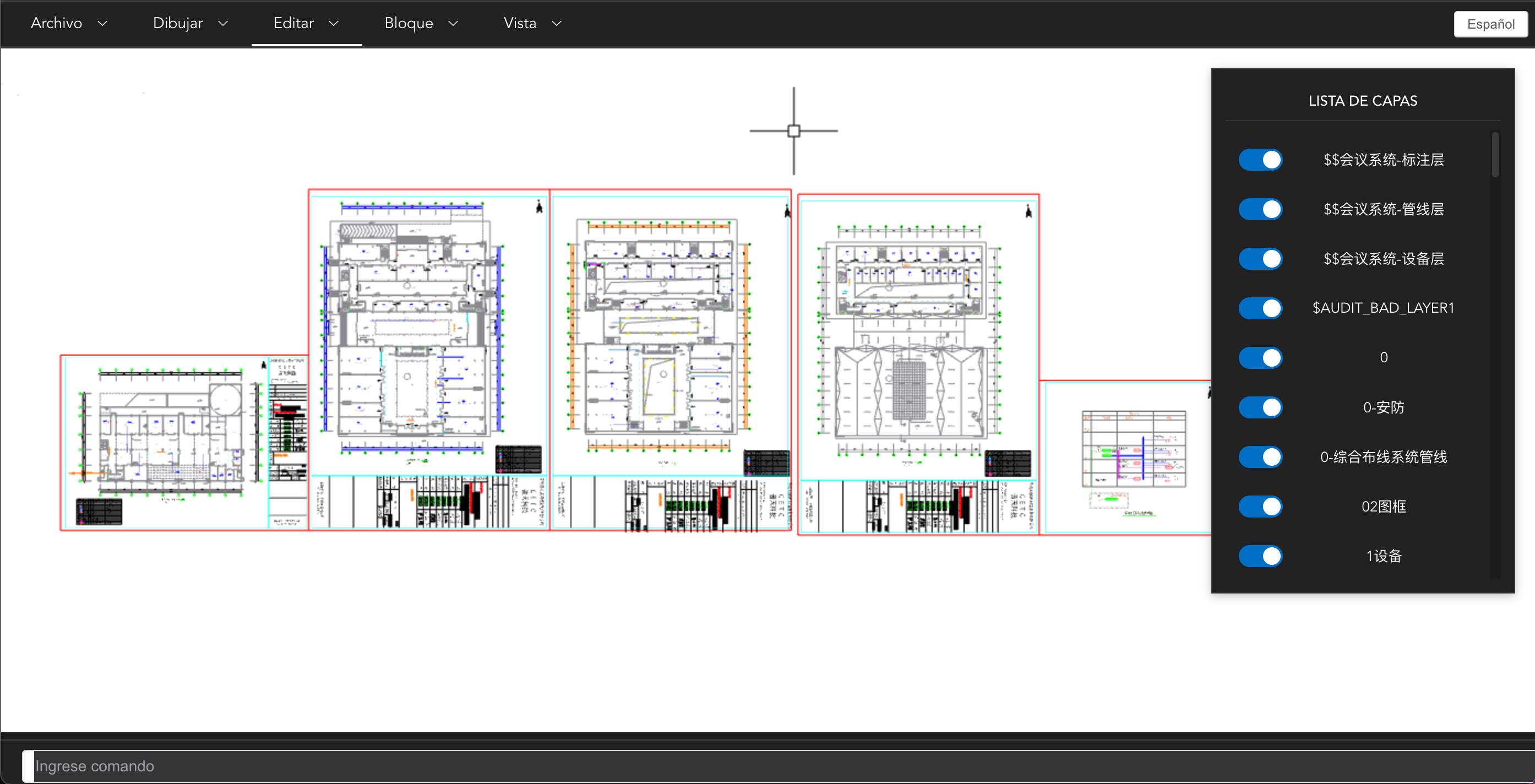

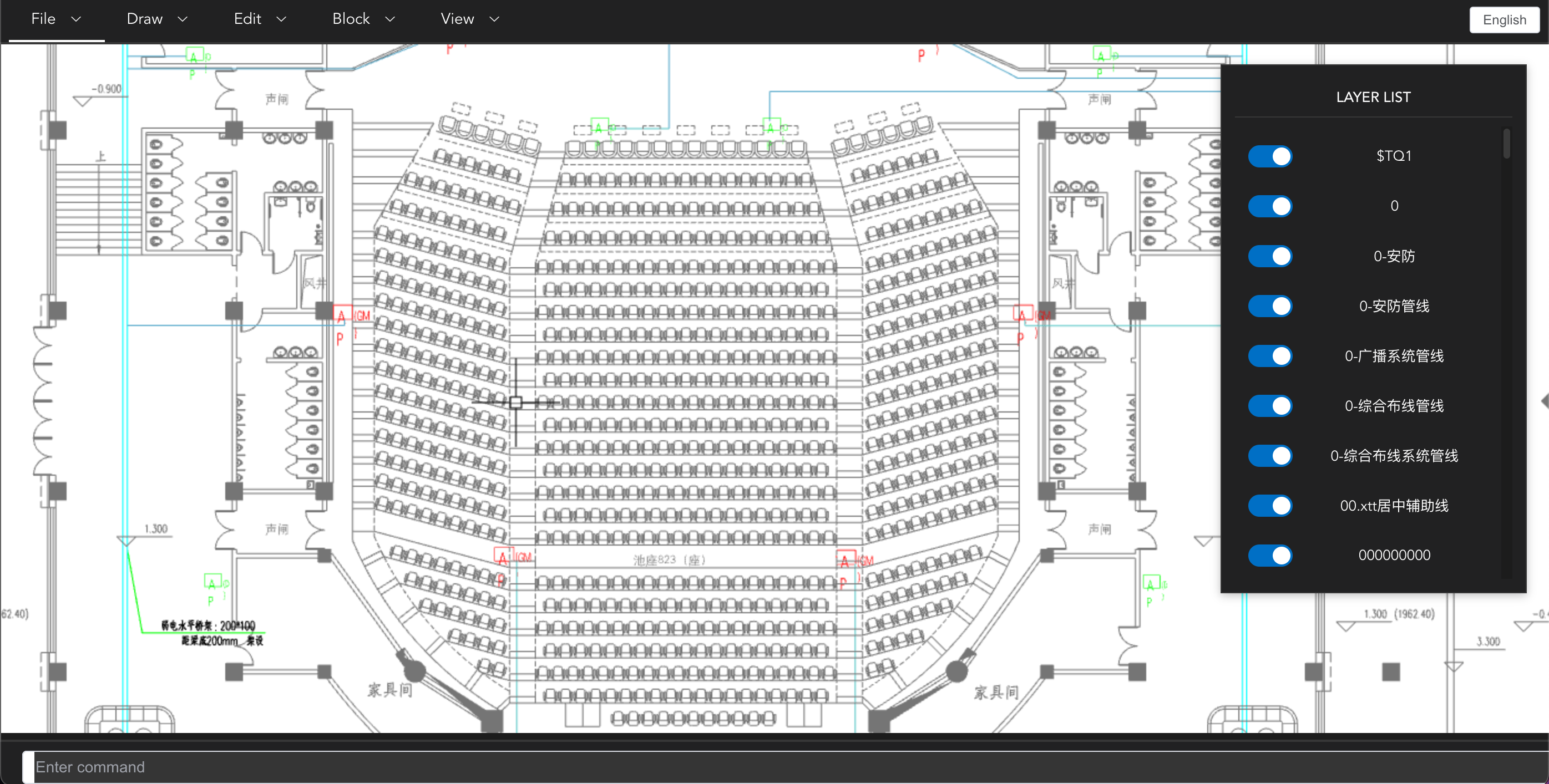

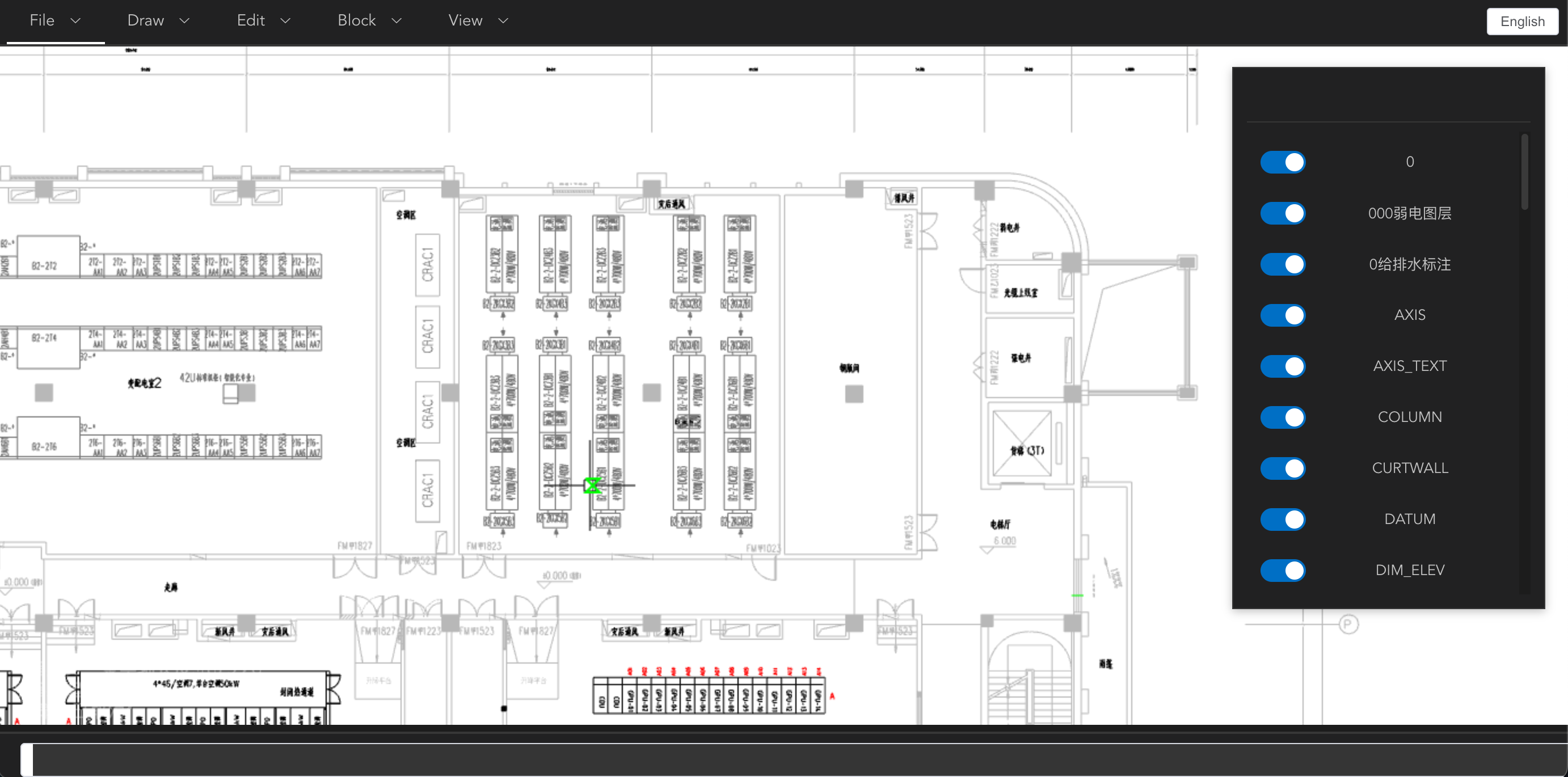

• Interactive Viewing: Pan, zoom, toggle layers, 2D/3D views
• Embeddable Viewer: Integrate into any web platform
• No Plugins Required: Full web-native experience

⚙️ Built for Developers

• Architecture: C++ DLL backend, Java REST API, TypeScript frontend SDK
• CAD Engine: Powered by Teigha
• Cross-platform Ready: Low resource requirements

🔌 Integration & API

• Endpoints: Upload, Save, Draw, Edit, Snap, Render
• Input: DWG file streams
• Output: Saved on backend, stream returned
• SDK: TypeScript SDK included

🎨 Rendering Options

• Custom resolution, DPI, color depth, line thickness, background color
• 3D view rendering supported
• Watermarks & branding supported
• Preserves fonts & hatch patterns

💡 Optional Capabilities

• Layer/Object recognition
• Offline support
• Not supported: Metadata extraction, AI/ML features

🎯 Who It’s For

• Software Developers
• Engineering Teams
• CAD Software Vendors
• Web Platforms with CAD visualization

🌟 Why Choose Us?

• High performance & scalable
• Developer-friendly with clear API
• Easy integration & deployment
• Full rendering control
• Reliable CAD engine (Teigha)
• Batch processing ready

📚 Documentation & Demo

We provide detailed documentation, sample projects, and demo access.
